CNTE

When it comes to Energy Storage Systems (ESS), we can offer numerous solutions, both for commercial and industrial (C&I) applications. We have flexible and scalable systems for both peak shaving, PV consumption, VPP (Virtual Power Plant) and more, with capacities from 50kWh to 4MWh or more.

When you have a capacity problem, energy storage is the solution. This way, you are no longer completely dependent on the grid connection and always have enough power. You can even automatically buy and sell energy at the best price per kWh. Trading on other energy markets can also give you additional benefits. Store the solar power from your own solar panels in your battery and decide when to use it or feed it back to the grid.

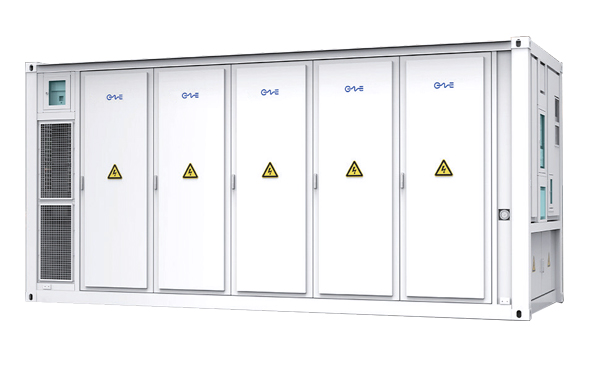

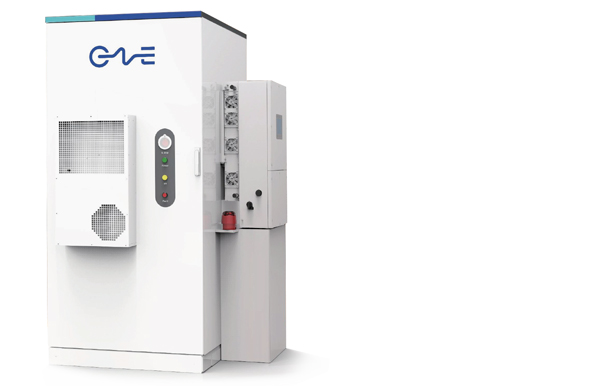

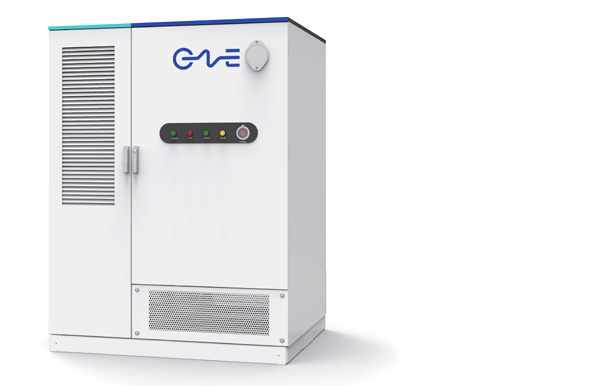

For industrial solutions, we cooperate with CNTE and offer STAR H-232, STAR T and STAR Q, among others.

Battery specifications

Battery type: LFP
Battery model: 285Ah / 306Ah
Capacity: 1896～4073kWh
Voltage Range: 1164.8～1497.6Vdc
P-rate 1P
Cooling method: Liquid Cooling
Protection rating: IP55
Dimensions (W×D×H): 6058 ×2438×2896 mm
Gewicht: ≈35T
Weight: UN 38.3, UN 3536, UL 1973, UL 9540A, IEC 62619, IEC 61000-6-2/-4, IEC 62477-1, IEC 62933-5-2, IEC 63056, IEC 60730-1
Advantages

Ultimate safety
Standardised design
Intelligent power management
Outstanding performance
Smart liquid cooling
LFP battery
